Traeger Wire Diagram. Traeger Grill Wiring Diagram 1-800-TRAEGER (1-800-872-3437) 6:00 am - 10:00 pm MST Connect the cables to the new controller, referring to the wiring diagram color coding in step 6
Traeger Wiring Schematic from wiringrecliners.z19.web.core.windows.net

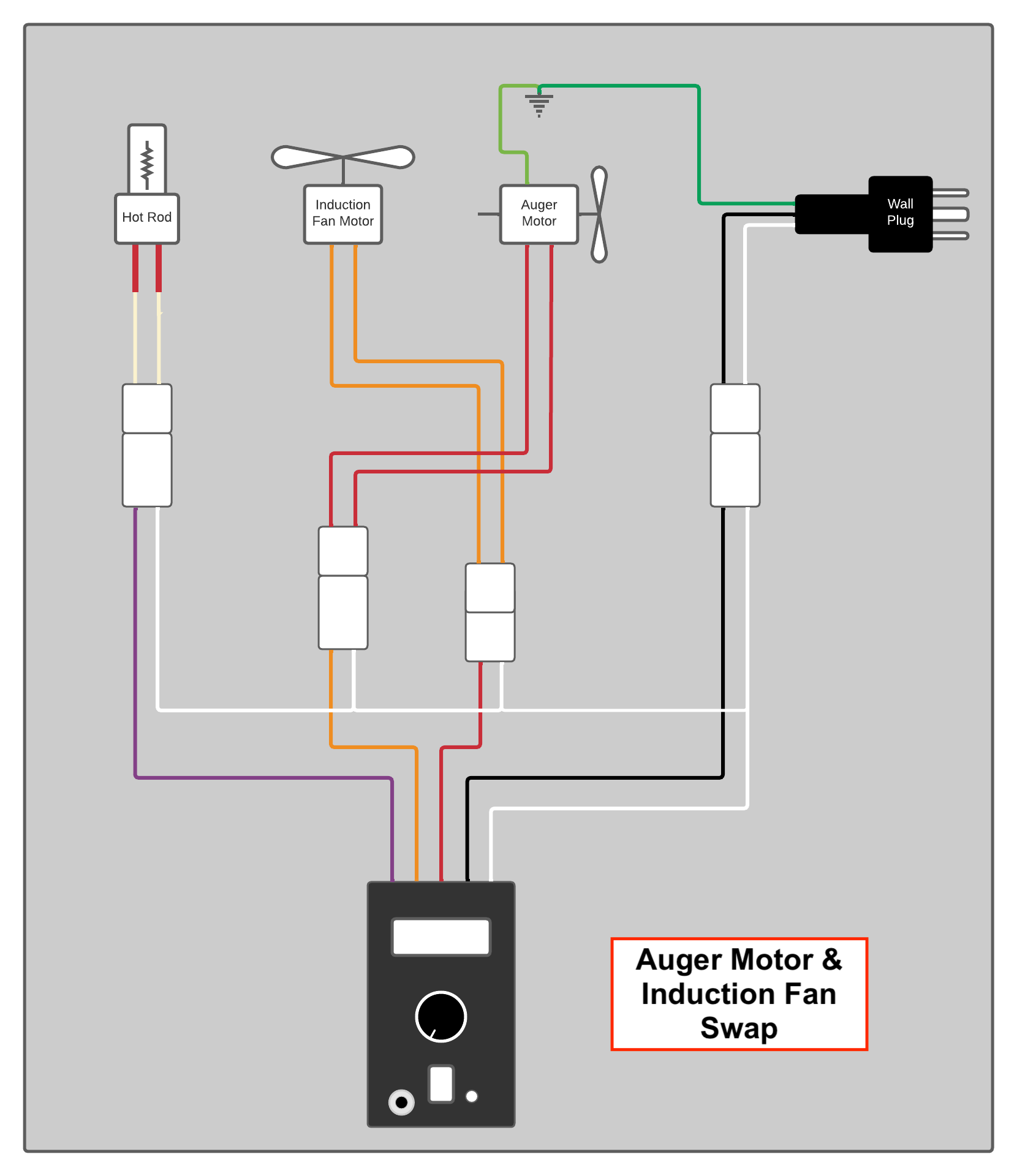

I take you through the step-by-step process showing which con. NOTE: While the image in the diagrams below depict a Pro controller, the wiring applies to any type of AC controller (Including the AC WiFi controllers)
Traeger Wiring Schematic
Rod (Purple / White wire pair as shown in the wiring diagram near the end of this manual) Page 29 TRAEGER'S VIP-365 CUSTOMER SERVICE TRAEGER PELLET GRILLS LLC Phone: 1-800-TRAEGER 1215 E WIRING DIAGRAM RTD SENSOR BLACK/WHITE WIRES POWER CORD TEMPERATURE DIAL RED/WHITE WIRES RTD WIRES AUGER DRIVE MOTOR.
Traeger wiring harness diagram. Unscrew and carefully pull out the grill controller from the. Page 29 TRAEGER'S VIP-365 CUSTOMER SERVICE TRAEGER PELLET GRILLS LLC Phone: 1-800-TRAEGER 1215 E

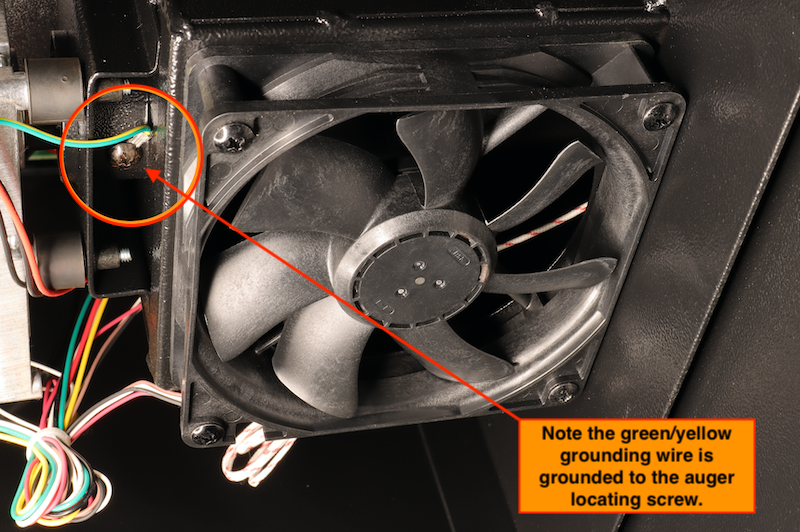

Wiring Diagram For Traeger Grill Greenked. Steps to ensure proper wire connection when you get errors noting a component is disconnected on your AC grill. D2 grills are Traeger grills with WiFIRE technology that have a dot matrix FSTN display.
